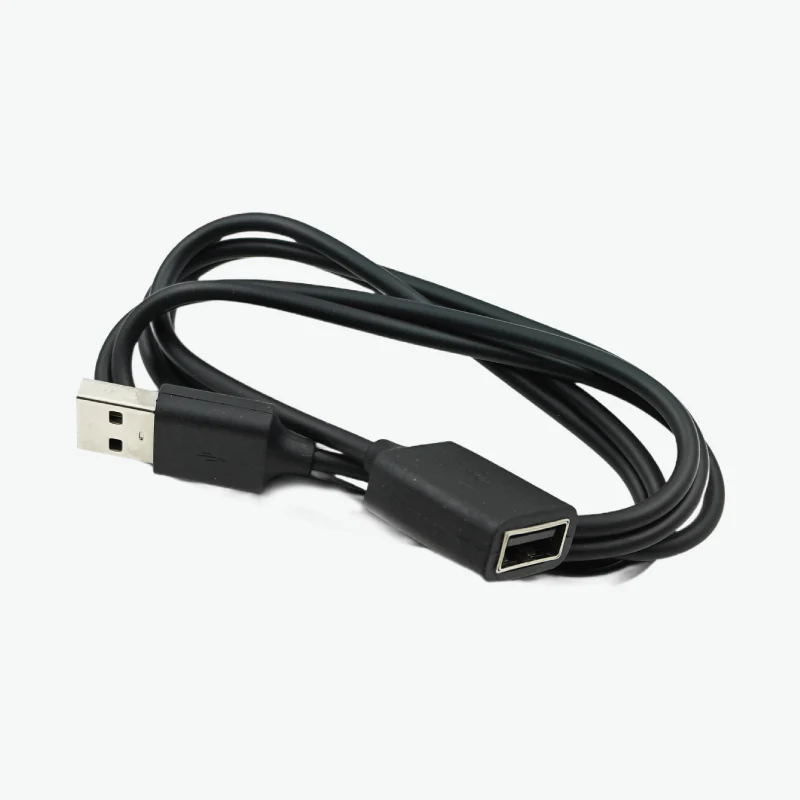

This is a 1.3m long USB extension cable equipped with type A male connector on one end to plug into your computer and a type A female connector at the other that allows for a second USB cable to be inserted.

This USB extension cable is used to extend a USB cable when it won't reach without signal loss and potential performance problems.

This extension cable is ideal for connecting USB peripherals without having to plug them directly into your computer, and it doesn't take up too much space in your workspace. This cable is frequently used with MicroViews, RFduinos, and USB Breakouts.



Package Includes:

1 X 1.3m USB Male to Female Extension Cable

USB Male to Female Extension Cable Pin Description:



Technical Specifications:

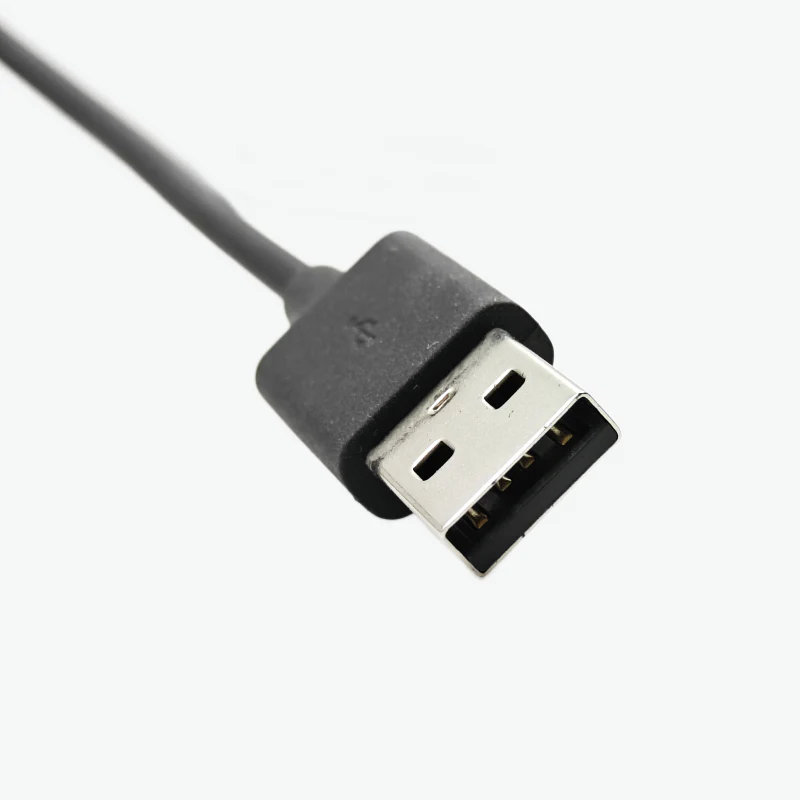

• Connector A: USB 2.0 A Male Solder Type (REVERSIBLE)
  Insulation: Blue
  Contact: Gold Plated
  Shell: Fe,Nickel Plated

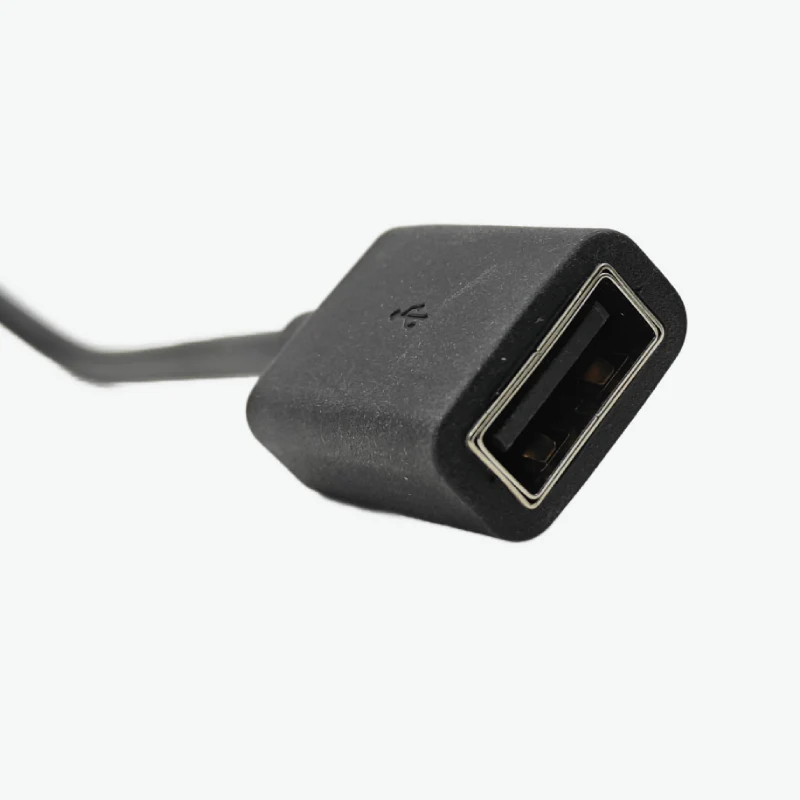

• Connector B: USB 2.0 A Female Solder Type
  Insulation: Blue
  Contact: Gold Plated
  Shell: Fe,Nickel Plated
• Cable Wiring: 28AWG Cu*1P+24AWG Cu*2C+ADB(48/0.12ALMG) Jacket Material: PVC OD: 4.5mm ±0.2mm
• Cable Colour: Gray
• Cable Length (m): 1.3m
• Power capacity is up to 90mA of power to the connected device
• Full 480Mbps Transfer rate and backward compatible to USB 1.1
• Plug and Play
• Universal Compatibility: The cable is compatible with all computers, devices and cables with USB A connectors. Backward compatible to USB 1.1 (12Mbps)

USB Male to Female Extension Cable Dimensions and Footprint:
