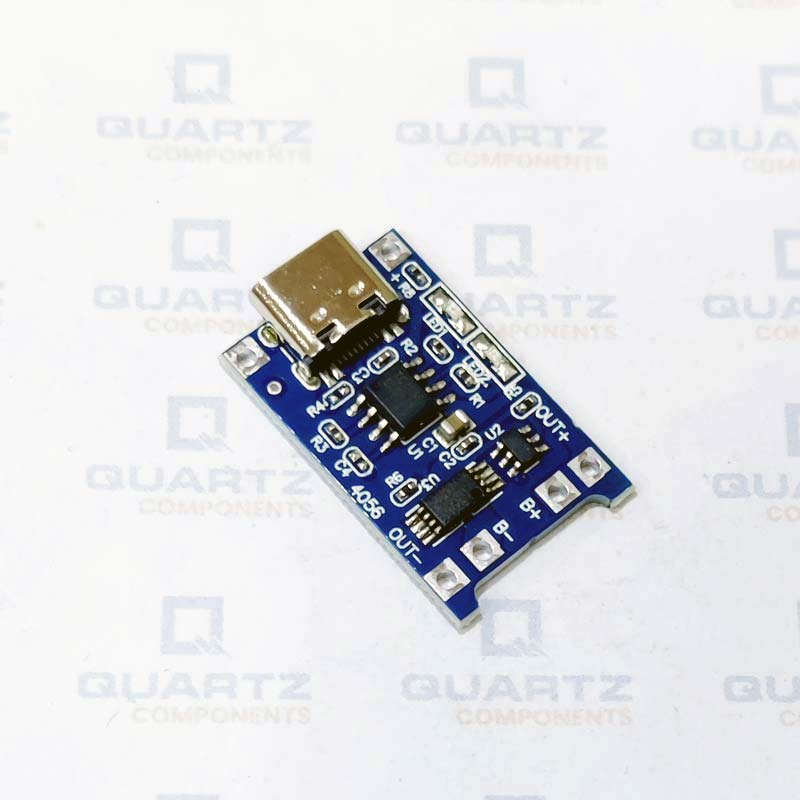

TP4056 Battery Charging Protection Module (Type C)
TP4056 Type C 5V 1A Lithium Battery Charger Board is a complete constant-current / constant voltage linear charger for single cell lithium-ion batteries. It's SOP package and low external component count make the TP4056 ideally suitable for portable applications. TP4056 module features a widely available Type C connector and with a led indicator for state detection.
TP4056 Module Specifications:
- Input voltage : 4.5V ~ 5.5V
- A full charge voltage: 4.2V
- Power: 4.2 w
- Charging accuracy: 1.5%
- Charging indicator: micro LED
- Input Interface: Type C
- Charging method: linear charge
- Operating Temperature: -10 to +85ºC
Package Includes:
1 x TP4056 Battery Charging Protection Module (Type C)
TP4056 Type C 5V 1A Lithium Battery Charger Board is a complete constant-current / constant voltage linear charger for single cell lithium-ion batteries. It's SOP package and low external component count make the TP4056 ideally suitable for portable applications. TP4056 module features a widely available Type C connector and with a led indicator for state detection.
TP4056 Module Specifications:
- Input voltage : 4.5V ~ 5.5V
- A full charge voltage: 4.2V
- Power: 4.2 w
- Charging accuracy: 1.5%
- Charging indicator: micro LED
- Input Interface: Type C
- Charging method: linear charge
- Operating Temperature: -10 to +85ºC
Package Includes:
1 x TP4056 Battery Charging Protection Module (Type C)
Description
TP4056 Type C 5V 1A Lithium Battery Charger Board is a complete constant-current / constant voltage linear charger for single cell lithium-ion batteries. It's SOP package and low external component count make the TP4056 ideally suitable for portable applications. TP4056 module features a widely available Type C connector and with a led indicator for state detection.
TP4056 Module Specifications:
- Input voltage : 4.5V ~ 5.5V
- A full charge voltage: 4.2V
- Power: 4.2 w
- Charging accuracy: 1.5%
- Charging indicator: micro LED
- Input Interface: Type C
- Charging method: linear charge
- Operating Temperature: -10 to +85ºC
Package Includes:
1 x TP4056 Battery Charging Protection Module (Type C)
