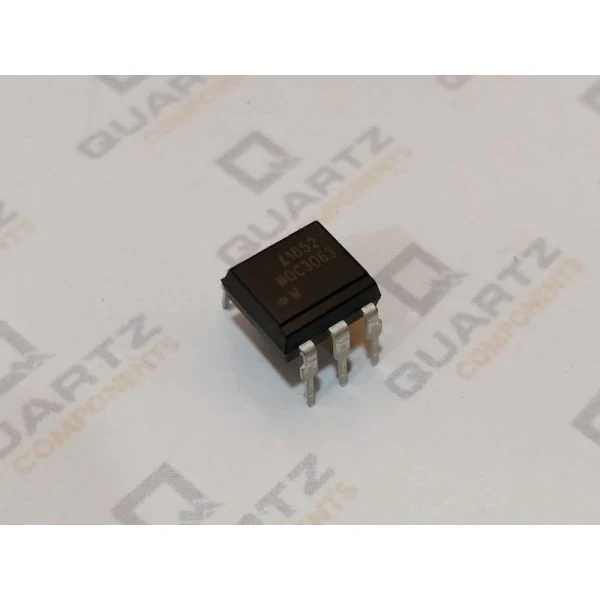

The MOC3063 IC is a 6-pin optocoupler that has an IR LED input coupled to a TRIAC output with a Zero-Crossing option. This IC is designed to drive and to provide AC isolation to logic systems and equipment powered from 115/240 VAC lines.

Product Description of MOC3063 Zero Cross Triac Optocoupler



Features of MOC3063 Zero Cross Triac Optocoupler

• Simplifies logic control of 115/240 VAC power
• Zero voltage crossing
• Input IR Diode: Forward Current - 50mA; Reverse Voltage - 6V;  Power Dissipation-  120mW
• Output Photo TRIAC: Off-State Output Terminal Voltage - 600V ; Forward Current (Peak) - 1A; Power Dissipation - 150mW
• High Isolation Voltage (5.3kV _RMS,7.5kV_PK )
• 5mA Trigger Current
• Operating Temperature: -40°C to 100 °C



Package Contents

1 x MOC3063 Zero Cross Triac Optocoupler/Opto-Isolator IC
