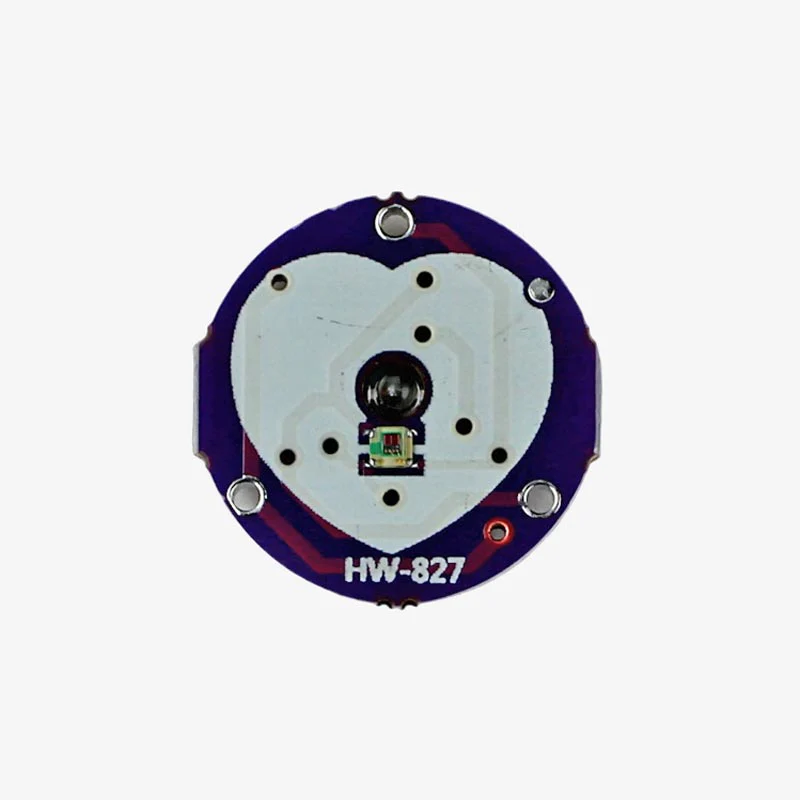

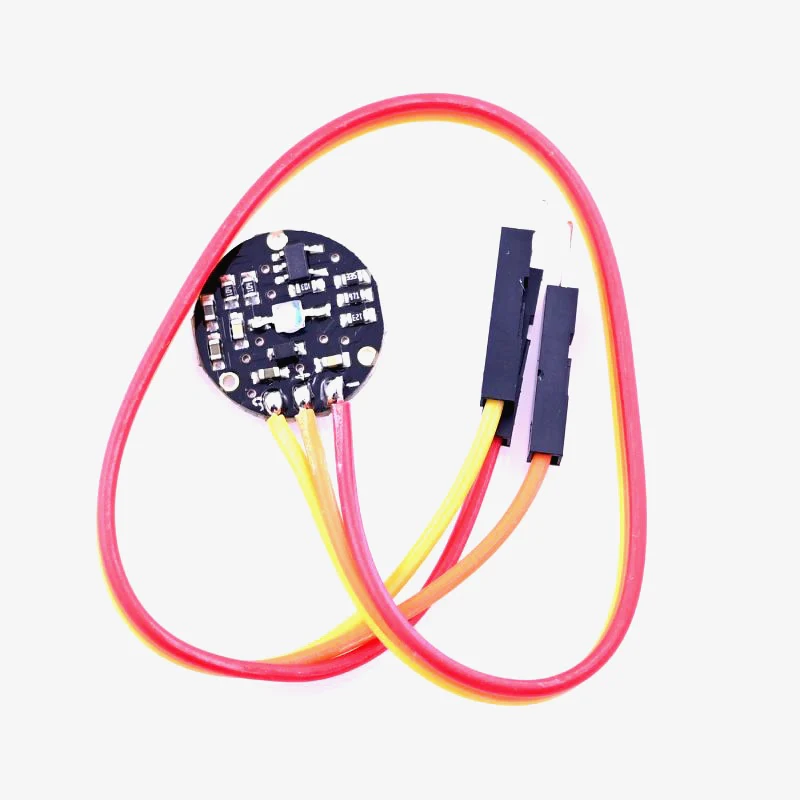

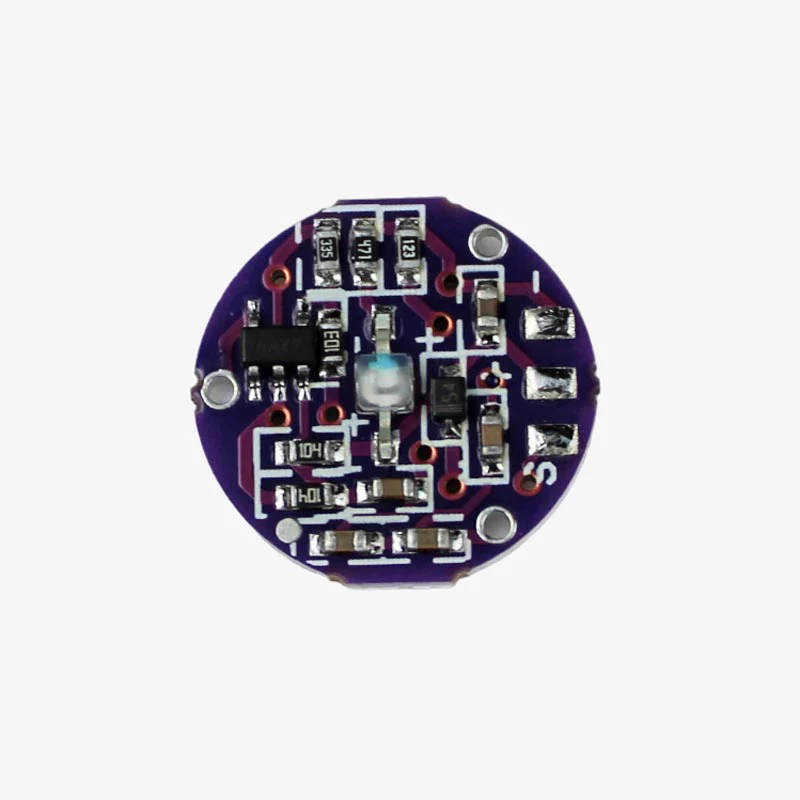

Heart Rate Pulse Sensor Module
It is easy to use a Pulse sensor that can be used to detect the Heart Rate of a Person. Heart rate is essential to determine your health and also to monitor while working out or running. This works on a principle called photoplethysmography, which means the changes in the volume of blood in an organ is measured by the changes in the intensity of the light passing through that organ hence the emitted light from the LED will be received by photosensor only when there is blood in the vein hence measuring the pulse. The output signal is further conditioned and filtered to give the final output. This Heartbeat sensor module can be easily used with Arduino to monitor anxiety levels, remote patient monitoring or exercise routines.
Specifications:
- Operating Voltage: +5V or +3.3V
- Plug and Play type sensor
- Maximum Current Consumption: 4mA
- Inbuilt Amplification and Noise cancellation circuit.
- Small Size makes it suitable for battery-powered devices.
- Diameter: 0.625”
- Thickness: 0.125” Thick
Product Description:
To connect the sensor module to any Microcontroller like Arduino, connect to VCC and GND to power it and get the output from Analog pin connect it to any pin with ADC on the board. The positioning of the sensor is important. It should always be put over a vein with slight pressure to hold it in place. Also, it has signal conditioning components that are also onboard the module, so do not touch it with wet hands.
Package Includes:
1 x Heart Rate Pulse Sensor Module
