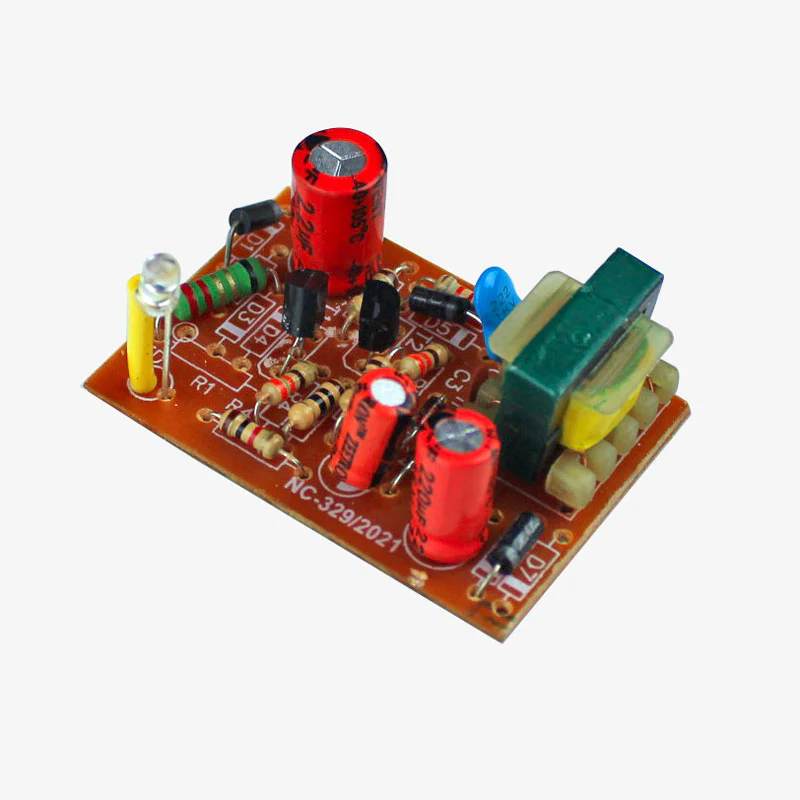

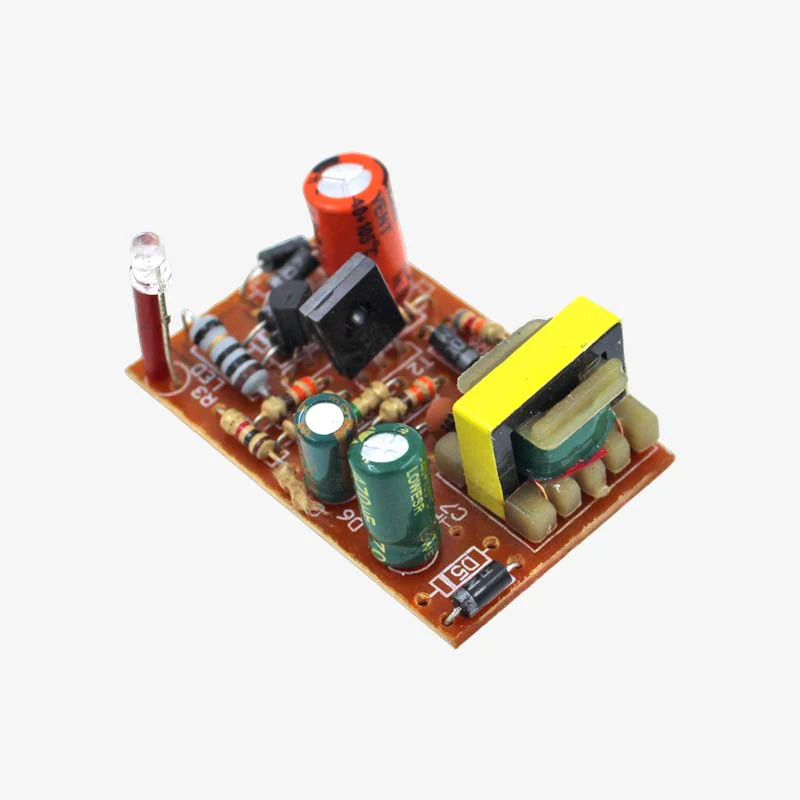

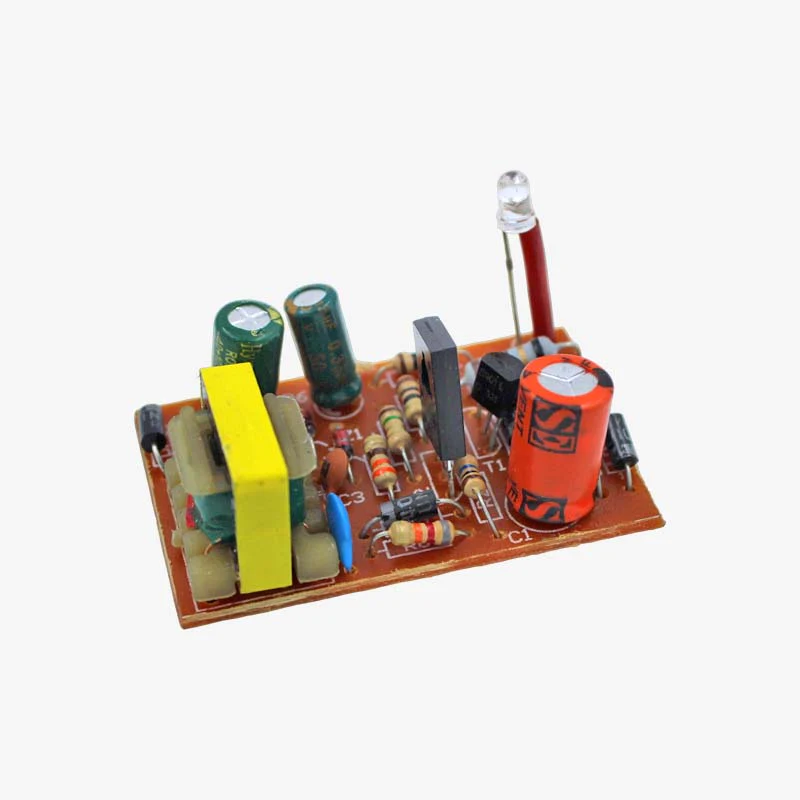

5V/800mA Switch Power Supply Module (SMPS) PCB
5V/800mA Switch Power Supply Module (SMPS) PCB can be used to power your low power electronic circuits like battery charger, LED drivers, etc. This is a transistor-based low-cost power supply module that can be used for projects with low power consumption.
It is very easy to use this module connect the input AC lines on the designated pins from your wall socket and take out the regulated power supply from the output pins from the module. It has stabilizing capacitors and protection circuit onboard so you don’t have to connect any additional circuitry.
Pinout Image
Specifications:
- Input Voltage: 220V AC
- Output Voltage: ~5V DC
- Dimension: 30mmx40mmx15mm
Package Contains
1x 5V/800mA Switch Power Supply Module
